Funnel

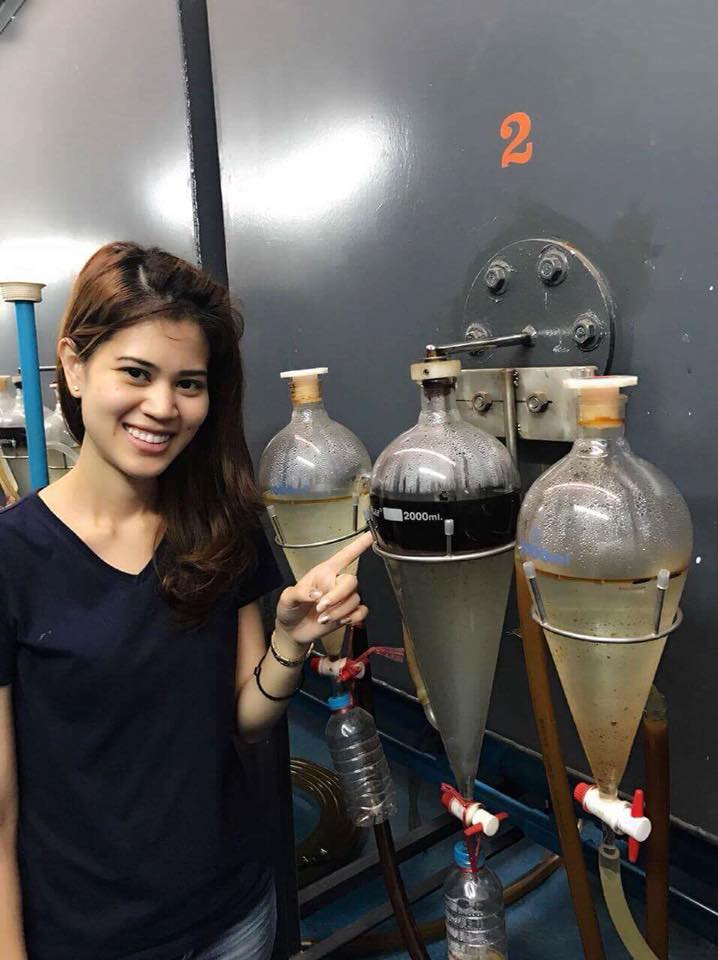

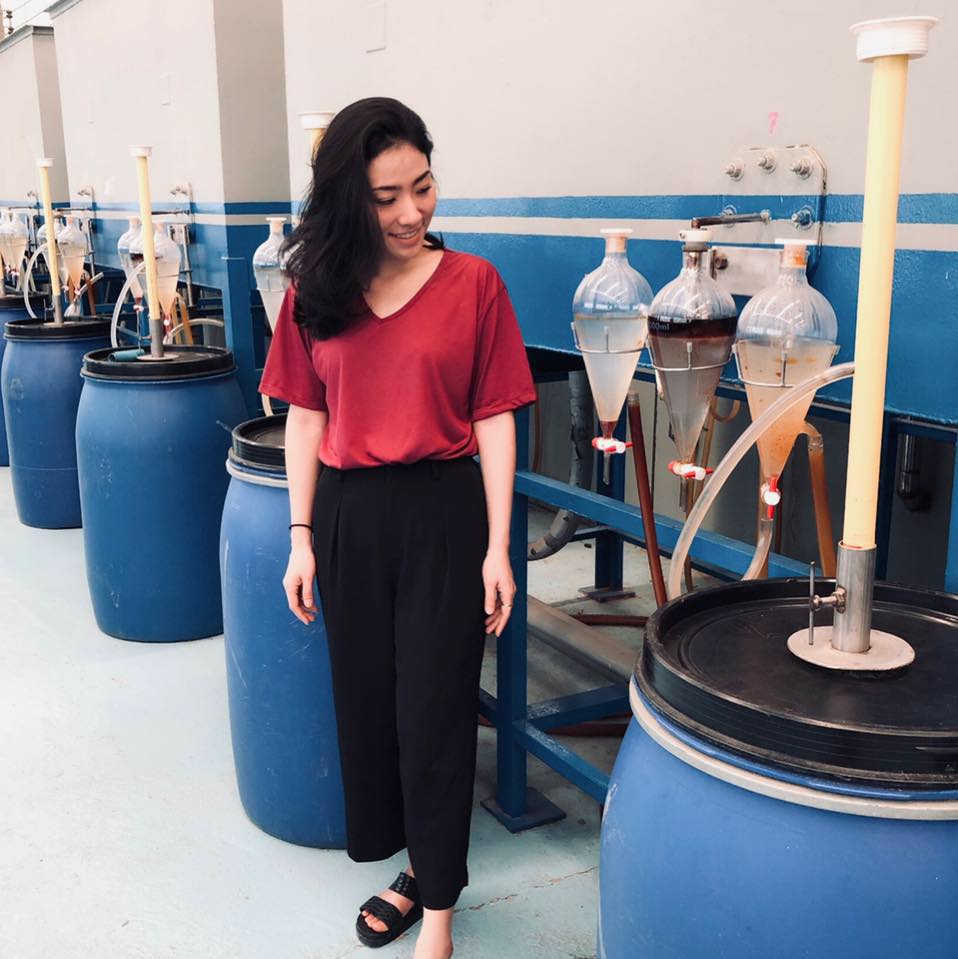

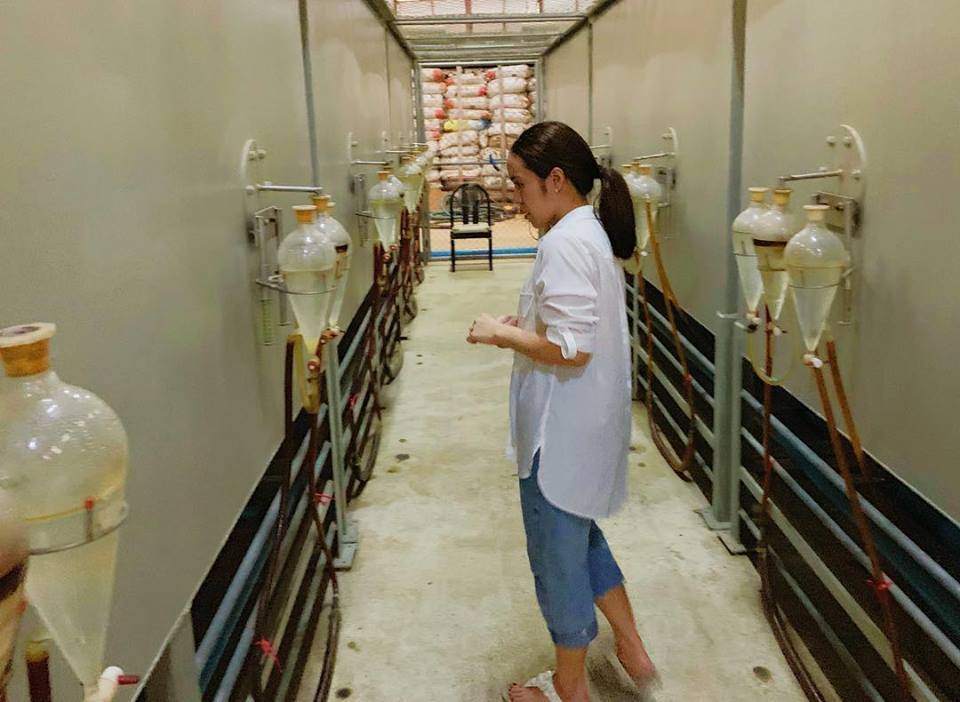

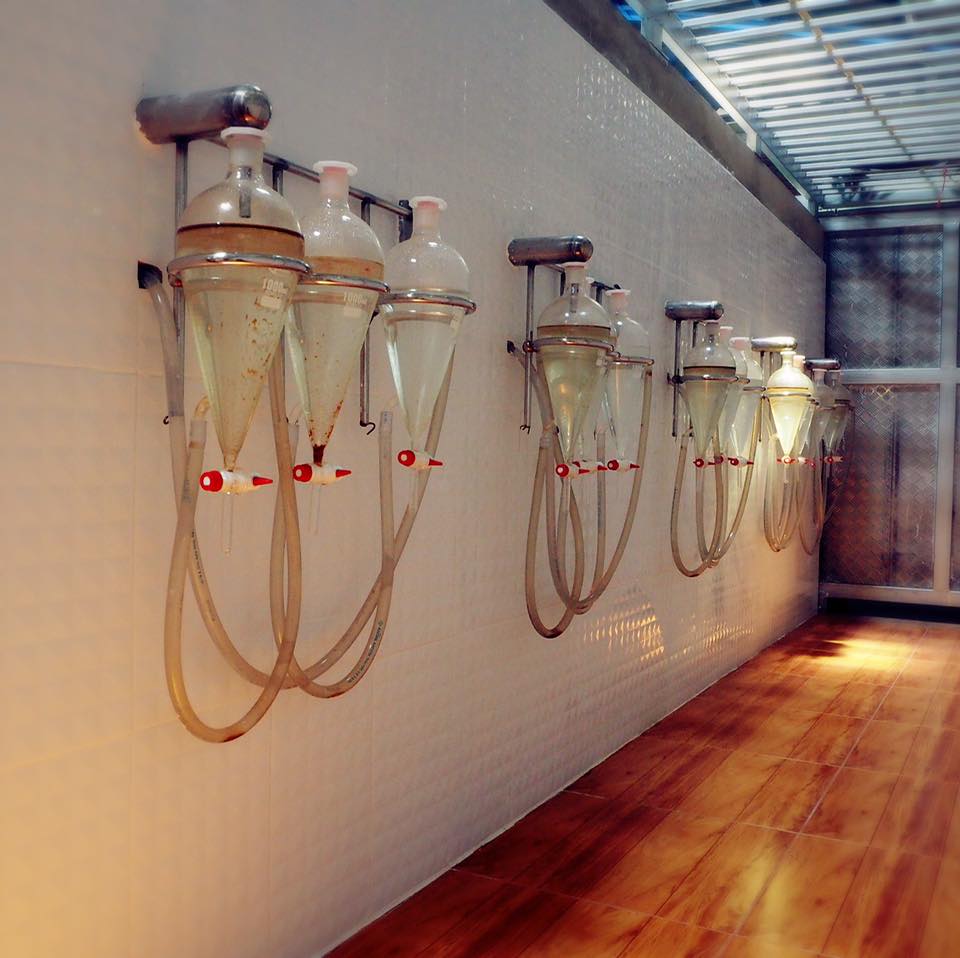

Application of multiple collecting funnels is very common in Thailand, i should say … a gadget NOT to be missed in distillation set up. Many Thai factories where they use not 1 .. but 2 or 3 collecting funnels. The hydrosol passing through each funnel and going back to the boiler.
Once cooking is complete each of the 3 collecting funnels contains oil with a slightly different scent profile.

多重应用的分液收集漏斗在泰国非常普遍, 我应该说 … 他是一个在蒸馏装置不容错过的小工具. 许多泰国蒸馏厂, 他们不止使用1 … 但2或3个收集漏斗. 纯露通过每个漏斗并返蒸馏锅. 一旦烹饪完成, 3个收集漏斗中的每一个都包含具有略微不同的香味轮廓的油.

dp

dp

dp1

dp

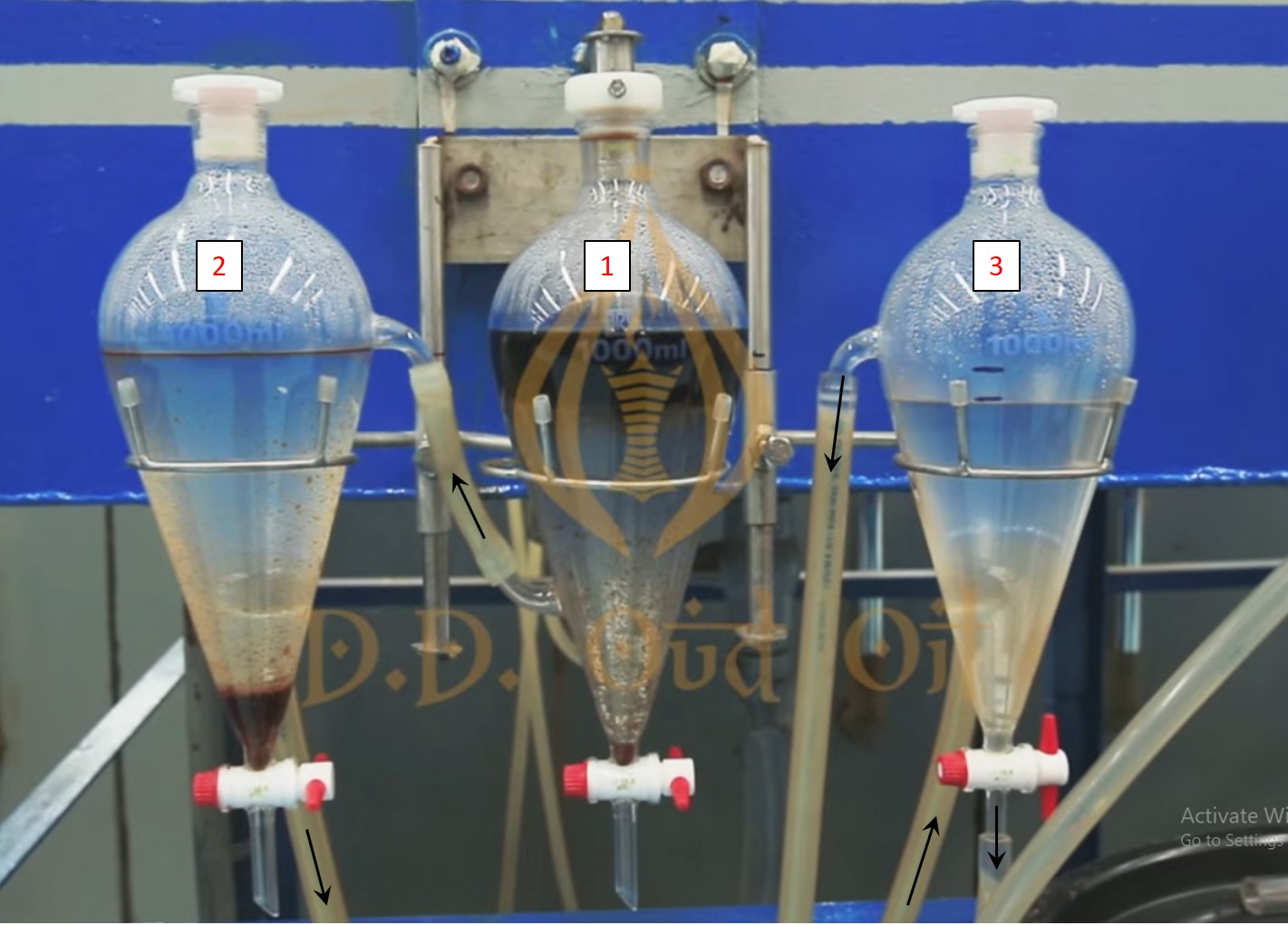

dpAs you can see the second collecting funnel (on the left) apart from small oil layer at the top of water, also contains so called sinking oil. This is the oil that is heavier than water. If one not recycle hydrosol back to the still the oil is wasted and the scent profile of oil may be not complete…

正如你可以看到第二个收集漏斗(左边)除了水顶部的小油层外, 还含有所谓的沉水油. 这是比水重的油. 如果一个人不回收纯露水回到蒸馏锅中, 油就会浪费掉, 导致沉香油的香味不完整的可能性 …

dd oud

dp

Should you scratch your head … what is the purpose of using combination of 3 funnels, when a single funnel will do the work? Well, there is always a hidden secret behind every innovation practically.

你应该挠头吗? 当一个收集漏斗可以完成工作时, 使用3个漏斗组合的目的是什么? 嗯, 实际上每项创新背后都隐藏着一个隐藏的秘密.

@@@

@@@

Specification of Separatory Funnel ..

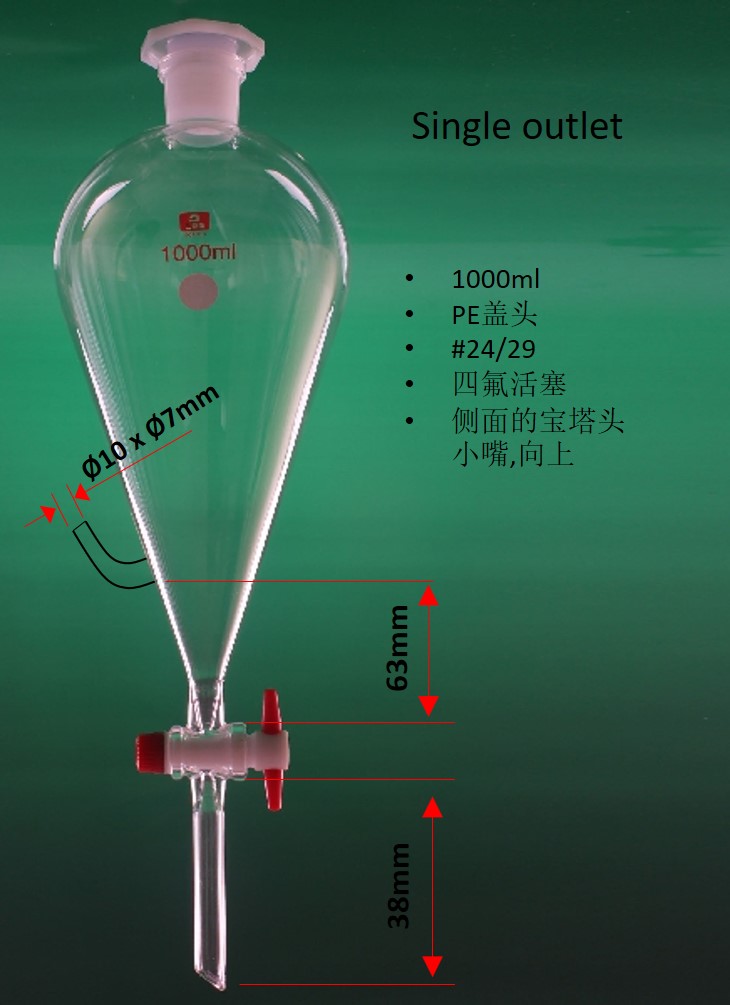

Funnel No : 1 .. Single outlet ..

collecting funnel

  • Pear shape funnel
  • Material : Borosilicate glass 3.3
  • Socket size #24/29
  • 1000ml capacity
  • PTFE stopcock
  • 1 pagoda-head outlet at sideway, pointing upwards
  • Diameter of outlets Ø10 x Ø7mm

Unit price : MYR250 / pc

MYR212 / pc > 10 units

@@@

@@@

@@@

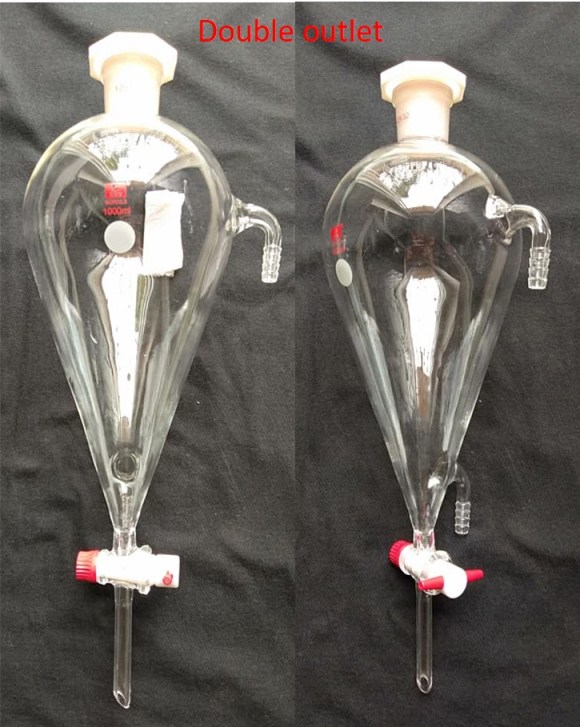

Funnel No : 2 and 3 .. Double outlets

funnel

  • Pear shape funnel
  • Material : Borosilicate glass 3.3
  • Socket size #24/29 or 29/32
  • 1000ml capacity
  • PTFE stopcock
  • 2 pagoda-head outlets at sideway, pointing downwards
  • Diameter of outlets Ø10 x Ø7mm
  • angle between outlets 90°

Unit price : MYR300 / pc

MYR255 / pc > 10 units

WhatsApp  : Tee  00 6 012 323 1161  (Malaysia)
