Mini pump

Mini pump set is reusable and mainly used in direct nutrient or chemical application into tree stem.

Trunk injection of trees is a way to efficiently treat many different insect and disease problems, as well as nutrient deficiencies, in a manner that limits environmental exposure. This method also uses the least amount of pesticide as compared to other conventional treatment methods. Tapping into the trees natural circulatory process allows chemicals to dissipate rapidly and effectively, minimising wastage yet maximising efficiency by distributing to vitally important elements of the tree’s infrastructure. The chemical reaches every element of the tree including the fine root hairs.

Applying chemicals to the plant tissue by spraying is inefficient especially in the fight against root pathogens, and a tiny fraction of conventionally used chemical is injected directly into the tree, without any release of chemicals in the environment.

One step further, click following links about …

The proper technique of injection zone : Root flare

Small-volume Vs Larger-volume injection

Application example …..
1. Inoculation in Agarwood tree
2. Disease control in Durian tree … tree injection with fungicide
3. Pests control in high rise tree …. tree injection with pesticide

Maximum pressure can be exerted upto 2bar, equivalent to 2kg/cm2. Always leave an enough air volume 1/2 ~ 2/3 for air expansion.

Specification

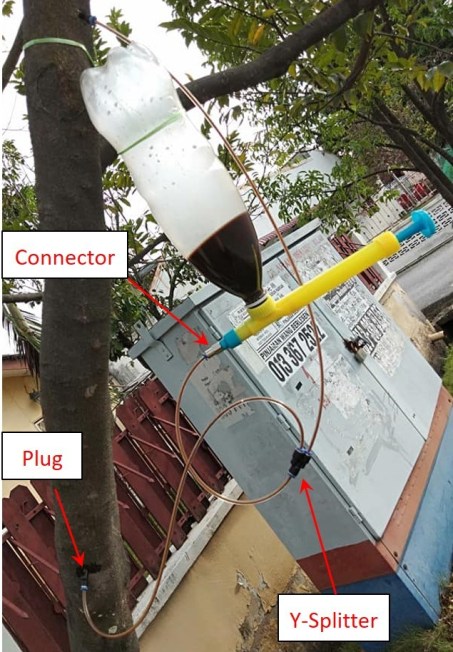

Mini pump (1pc) + Connector (1pc) + Splitter (1pc) + Plug (2pcs) + Hose (1.5M) = 1 set

Number of outlet   :  2

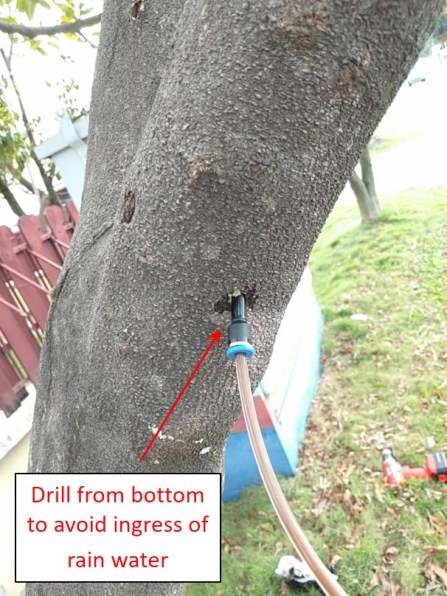

Size of drill bit   : Ø5.5mm

Bottle is NOT included

Minimum order quantity  :  5 sets

Unit price : MYR 20

Order above 100 units : 30% discount

Tee   :  +6012 – 323 1161
